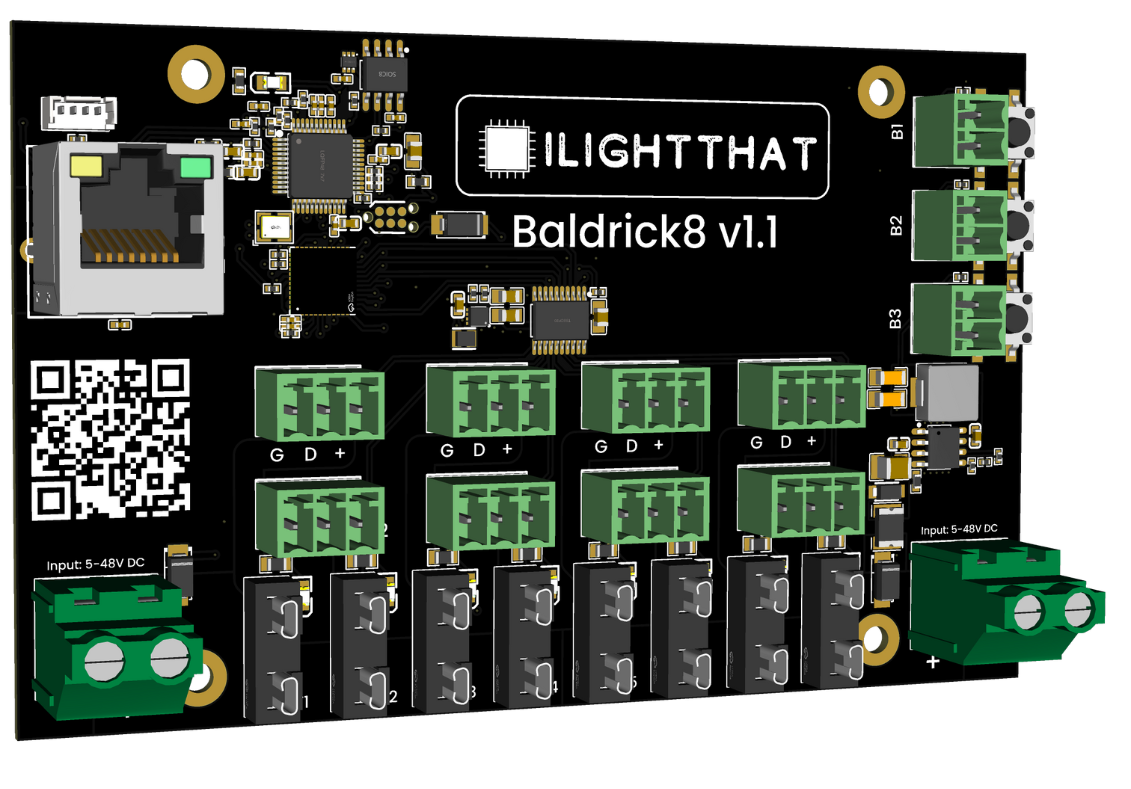

Baldrick8 Pixel Controller

Baldrick8 Controller Features

• 2 ports accepting 5v–24v (or up to 48v on version 1.1) with onboard power management and the option for individual voltages (to avoid any BOOM BOOM BOOM BOOMS).
• 8 Ports handling many pixels per port (up to 2250 channels per port (which is 750 RGB pixels at 40fps)
• 2 Power inputs (which combined with the included 7.5 amp fuses allows for full pixel runs at 100%)
• DDP, Artnet, E1.31 & sACN compatible
• 3 Programmable Button ports (Can use the FPP API to start / stop a sequence)
• Small footprint compatible with other smart receiver mounts
• No Pi or FPP Licence required
• Push from xLights integration

In addition, we’ve tried to add some simple quality of life improvements such as a QR code which links directly to the manual (easy to read on a mobile in the dark) and the three buttons have not only ports but physical buttons onboard to help you test without having to hook everything up.
