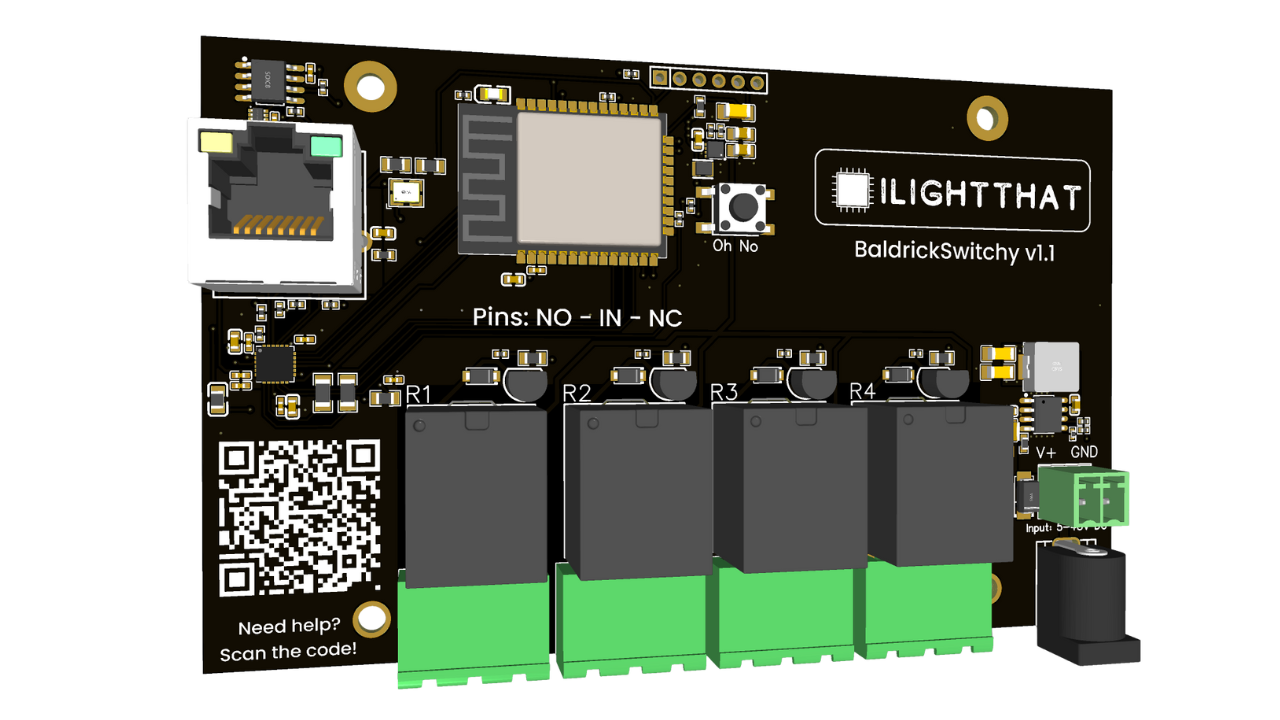

The BaldrickSwitchy is a four-relay controller for mains devices and traditional lighting. Motors, fans, floodlights, bubble machines: anything that needs switching on and off in time with your show.

BaldrickSwitchy Controller Features

  • 5v – 48v with onboard power management
  • 4 relays, each handling up to 8A and 300V (AC/DC), and fine with zero-voltage circuits too
  • DDP, Artnet, E1.31 & sACN compatible
  • Small footprint compatible with other Baldrick Boards & smart receiver mounts
  • Push from xLights integration
  • Controllable by the Turnip Network
  • Scannable QR code direct to the docs

Comes with a DarwinTray

You can put mains electricity through the relay connectors (never the barrel connector), so every BaldrickSwitchy ships with a DarwinTray. It covers the underside of the board to cut the chance of touching anything live, and still mounts easily in your box. It reduces the risk rather than removing it, so treat it like any other mains project.

Power use

0.07A at 12V when idle (0.17A at 5V), and 0.23A at 12V (0.725A at 5V) with all four relays on.

Where’s the WiFi?

There’s an ESP32 on board, but the Switchy sticks to Ethernet for a show that behaves the same every night. If you need relays and WiFi, the BaldrickScene has four relays, WiFi, inputs and pixel ports on one board.

Watch: getting started

Weight 0.22 lbs
Dimensions 0.8 × 7.9 × 3.9 in
